| DESCRIPCION |
MARCA |
GIGABYTE |
| MODELO |
B450M DS3H V2 |
| REVISION |
V1.0 |
| CHIPSET |
AMD B450 |
| TIPO DE SOCKET |
AM4 AMD
|
| PROCESADORES |
COMPATIBLE |
Procesador AMD Ryzen 9 SAM4 3XXX
Procesador AMD Ryzen 5 SAM4 3XXX
Procesador AMD Ryzen 7 SAM4 3XXX
|
| MEMORIAS |
SOPORTA |
Memoria RAM DDR4 2666Mhz PC4-21300
|
| TIPO |
DDR4 |
| NUMERO DE RANURAS |
4 |
| EXPANSION MAXIMA |
128 GB |
| TECNOLOGIA |
DUAL CHANNEL
|
| NOTA |
SOPORTA MEMORIA ECC UN-BUFFERED DIMM 1RX8/2RX8 (MODO NON-ECC)
SOPORTA MEMORIA NON-ECC UN-BUFFERED DIMM 1RX8/2RX8/1RX16 |
| VIDEO |
INCORPORA |
PUERTOS |
DVI-D
HDMI
|
| SONIDO |
CHIPSET |
REALTEK® ALC887 |
| PUERTOS |
LINE IN
LINE OUT
MICROFONO
|
| CONECTIVIDAD |
LAN |
CHIPSET |
REALTEK GbE LAN |
| VELOCIDAD |
10/100/1000 GB/S |
| CONECTOR PARA FUENTE |
ATX 12V 24 PINES
ATX 12V 4x2 PINES
|
| CONTROLADORES DE ALMACENAMIENTO |
SERIAL ATA |
NUMERO DE CONTROLADORES 6GB/S |
4 |
| CONECTOR M.2 |
SOCKET 3 |
1 x SSD M.2 connector (Socket 3, M key, Type 2242 / 2260 / 2280 / 22110 SATA and PCIe x4 / x2) |
| SOPORTA RAID |
RAID 0
RAID 1
RAID 10
|
| DISPONE DE SLOTS |
PCI EXPRESS X1 |
1 |
| PCI EXPRESS X16 |
1 |
| NOTA |
1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| PUERTOS INTERNOS |
USB 2.0 / 1.1 INTERNO |
2 |
| USB 3.1 GEN 1 INTERNO |
1 |
| OPTICAL S/PDIF OUT |
1 |
| TPM: 1 |
| CONECTORES BACK PANEL |
PS/2 COMBO |
1 |
| HDMI |
1 |
| DVI-D |
1 |
| USB 2.0 / 1.1 |
4 |
| USB 3.1 GEN 1 |
4 |
| RJ-45 |
1 |
| LINE-IN |
1 |
| LINE-OUT |
1 |
| MICROFONO |
1 |
| FACTOR DE FORMA |
TIPO |
MICRO ATX |
| ANCHO |
24.40 |
| LARGO |
21.50 |
| PRESENTACION |
CAJA
|
|

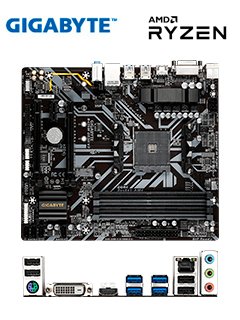

Motherboard Gigabyte B450M DS3H V2, AM4, B450, DDR4, SATA 6.0, USB 3.1, VD/SN/NW.
Soporta Procesadores AMD Ryzen 5000 Series/3rd/2nd/1st Gen Ryzen, 2nd/1st Gen Ryzen con Radeon Graphics, Athlon con Radeon Graphics, 4 ranuras DDR4 2933/2667/2400/2133 MHz, Realtek LAN GbE, Formato Micro-ATX.
