| DESCRIPCION |
MARCA |
ASUS |
| MODELO |
PRIME Z590-P WIFI |
| CHIPSET |
INTEL Z590 |
| TIPO DE SOCKET |
LGA1200 INTEL
|
| PROCESADORES |
COMPATIBLE |
Procesador Celeron Dual Core S1200 GXXXX
Procesador Core i3 S1200 10XXX - Decima Generacion
Procesador Core i3 S1200 11XXX-Onceava Generacion
Procesador Core i5 S1200 10XXX - Decima Generacion
Procesador Core i5 S1200 11XXX-Onceava Generacion
Procesador Core i7 S1200 10XXX - Decima Generacion
Procesador Core i7 S1200 11XXX-Onceava Generacion
Procesador Core i9 S1200 10XXX - Decima Generacion
Procesador Core i9 S1200 11XXX-Onceava Generacion
Procesador Core i5 S1700 12XXX-Doceava Generacion
Procesador Core i7 S1700 12XXX-Doceava Generacion
Procesador Core i9 S1700 12XXX-Doceava Generacion
|
| NOTA |
Procesador Pentium Gold S1200 GXXXX |
| MEMORIAS |
SOPORTA |
Memoria RAM DDR4 2400Mhz PC4-19200
Memoria RAM DDR4 2666Mhz PC4-21300
Memoria RAM DDR4 3000Mhz PC4-24000
Memoria RAM DDR4 3200Mhz PC4-25600
|
| TIPO |
DDR4 |
| NUMERO DE RANURAS |
4 |
| TECNOLOGIA |
DUAL CHANNEL
|
| VIDEO |
INCORPORA |
PUERTOS |
DISPLAYPORT
HDMI
|
| SONIDO |
CHIPSET |
REALTEK ALC897 |
| PUERTOS |
CENTER/SUBWOOFER SPEAKER OUT
LINE IN
LINE OUT
MICROFONO
OPTICAL S/PDIF
REAR SPEAKER OUT
|
| CANALES |
7.1 |
| CONECTIVIDAD |
LAN |
CHIPSET |
REALTEK 2.5Gb LAN |
| VELOCIDAD |
2.5 GB/S |
| PUERTOS RJ45 |
1 |
| WIRELESS |
PROTOCOLOS |
Wi-Fi 6
|
| PUERTO WIFI |
SI |
| CONECTOR PARA FUENTE |
1 X 24-PINES MAIN POWER
1 X 4-PINES +12V POWER
1 X 8-PINES +12V POWER
|
| CONTROLADORES DE ALMACENAMIENTO |
SERIAL ATA |
NUMERO DE CONTROLADORES 6GB/S |
4 |
| CONECTOR M.2 |
SOCKET 3 |
3 x M.2 SLOTS:
M.2_1 SLOT (KEY M), TYPE 2242/2260/2280/22110
M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 3.0 x4 & SATA MODES)
M.2_3 SLOT (KEY M), TYPE 2242/2260/2280/22110 (SUPPORTS PCIe 3.0 x4 & SATA MODES)
|
| DISPONE DE SLOTS |
NOTA |
1 x PCIe 4.0/3.0 x16
1 x PCIe 3.0 x16 (Soporta modo x4)
2 x PCIe 3.0 x1
|
| CONECTORES BACK PANEL |
PS/2 COMBO |
1 |
2 X USB 2.0 TIPO-A
2 X USB 3.2 GEN1 TIPO-A
1 X USB 3.2 GEN 2X2 TIPO-C
1 X USB 3.2 GEN 2
1 X RJ-45
1 X ASUS WiFi MODULE
|
| MARCA DE BIOS |
AMI BIOS UEFI |
| FACTOR DE FORMA |
TIPO |
ATX |
| PRESENTACION |
CAJA
|
|

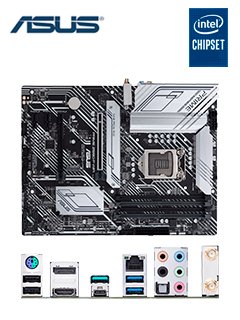

Motherboard Asus PRIME Z590-P WIFI, Intel Z590 LGA1200, DDR4, HDMI, DP, 5 x Audio Jacks
Soporta procesadores de 11ma y 10ma Generación Intel Core i9 / i7 / i5 / i3 / Pentium Gold / Celeron, 4 x DIMMS DDR4 5133(OC)...3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz / Dual Channel, 1 x Realtek 2.5Gb Ethernet, Intel Wi-Fi 6, Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC / 5 x Audio jacks, Almacenamiento 3 x M.2 slots (key M) / 4 x SATA 6Gb/s ports, Formato ATX.
