| DESCRIPCION |
MARCA |
GIGABYTE |
| MODELO |
Z390 GAMING X |
| CHIPSET |
INTEL Z390 |
| TIPO DE SOCKET |
LGA1151 INTEL
|
| PROCESADORES |
COMPATIBLE |
Procesador Celeron Dual Core S1151-V2
Procesador Core i3 S1151-v2 8XXX-Octava Generacion
Procesador Core i5 S1151-v2 9XXX-Novena Generacion
Procesador Core i7 S1151-v2 8XXX-Octava Generacion
Procesador Core i7 S1151-v2 9XXX-Novena Generacion
Procesador Pentium Dual Core S1151-v2 GXXXX
|
| MEMORIAS |
SOPORTA |
Memoria RAM DDR4 2400Mhz PC4-19200
Memoria RAM DDR4 2666Mhz PC4-21300
Memoria RAM DDR4 3000Mhz PC4-24000
Memoria RAM DDR4 3200Mhz PC4-25600
Memoria RAM DDR4 3600Mhz PC4-28800
|
| TIPO |
DDR4 |
| NUMERO DE RANURAS |
4 |
| EXPANSION MAXIMA |
64 GB |
| TECNOLOGIA |
DUAL CHANNEL
|
| NOTA |
SOPORTA MEMORIA ECC UN-BUFFERED DIMM 1RX8/2RX8 (MODO NON-ECC)
SOPORTA MEMORIA NON-ECC UN-BUFFERED DIMM 1RX8/2RX8/1RX16
SOPORTA EXTREME MEMORY PROFILE (XMP) |
| SONIDO |
CHIPSET |
REALTEK® ALC892 |
| CANALES |
7.1 |
| CONECTIVIDAD |
LAN |
CHIPSET |
GIGABIT INTEL LAN |
| VELOCIDAD |
10/100/1000 MB/S |
| CONECTOR PARA FUENTE |
ATX 12V 24 PINES
ATX 12V 4x2 PINES
|
| CONTROLADORES DE ALMACENAMIENTO |
SERIAL ATA |
NUMERO DE CONTROLADORES 6GB/S |
6 |
| CONECTOR M.2 |
SOCKET 3 |
1 X M.2 (SOCKET 3, M KEY, TIPO 2242/2260/2280/22110 SATA / PCIE X4/X2 SSD
1 X M.2 (SOCKET 3, M KEY, TIPO 2242/2260/2280 SATA / PCIE X4/X2 SSD) |
| SOPORTA RAID |
RAID 0
RAID 1
RAID 10
RAID 5
|
| NOTA |
COMPATIBLE CON INTEL OPTANE MEMORY READY |
| DISPONE DE SLOTS |
PCI EXPRESS X1 |
1 |
| PCI EXPRESS X16 |
2 |
| PUERTOS INTERNOS |
USB 2.0 / 1.1 INTERNO |
1 |
| USB 3.1 GEN 1 INTERNO |
1 |
| S/PDIF |
1 |
| TPM: 1 |
| CONECTORES BACK PANEL |
PS/2 COMBO |
1 |
| HDMI |
1 |
| USB 2.0 / 1.1 |
2 |
| USB 3.1 GEN 1 |
5 |
| USB 3.1 TIPO A |
1 |
| RJ-45 |
1 |
| LINE-IN |
1 |
| LINE-OUT |
1 |
| MICROFONO |
1 |
| CENTER/SUBWOOFER OUT |
1 |
| REAR SPEAKER OUT |
1 |
| OPTICAL S/PDIF OUT |
1 |
| MARCA DE BIOS |
AMI BIOS UEFI |
| FACTOR DE FORMA |
TIPO |
ATX |
| ANCHO |
22.50 CM |
| LARGO |
30.50 CM |
| PRESENTACION |
CAJA
|
|

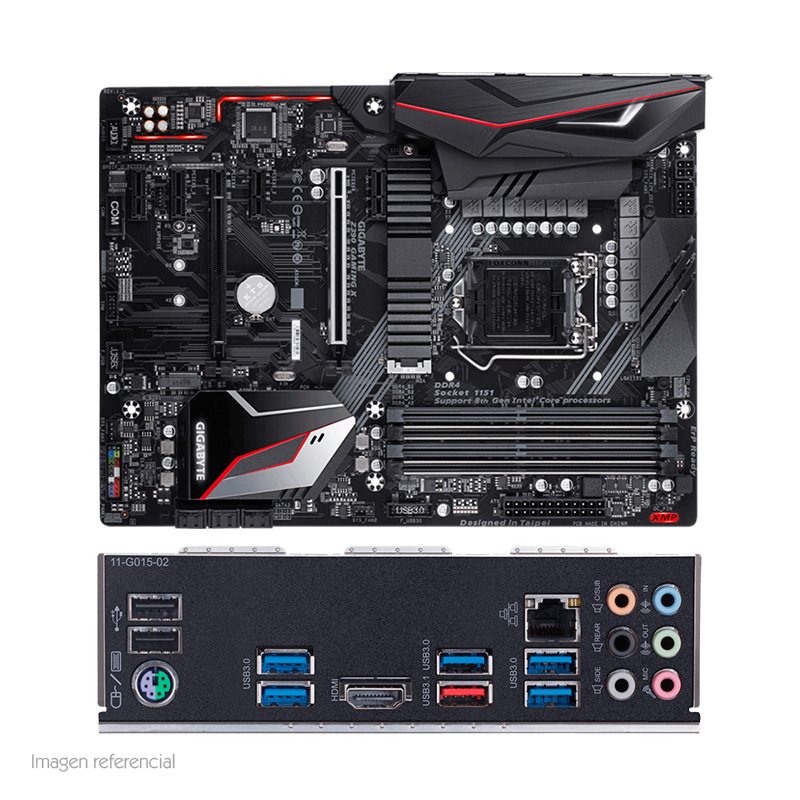

Motherboard Gigabyte Z390 Gaming X, rev 1.0, LGA1151, Z390, DDR4, SATA 6.0, USB 3.1
Soporta procesadores de 9na y 8va Generación Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron, 4 ranuras DDR4 2133 / 2400 / 2666 MHz, Intel GbE LAN, SN/VD/NW, formato ATX.
